Hidden Catch (World) / Tul Lin Gu Lim Chat Ki '98 (Korea) (pcb ver 3.03)

  1. Game infos
  2. Sound
  3. Driver
  4. Inputs
  5. Controls
  6. Display
  7. Dipswitchs
  8. Roms list
  9. Chips list
  10. Serie
  11. Categories
  12. MAMEinfo
  13. History
Download hidnctch.zip (26.06 MB)

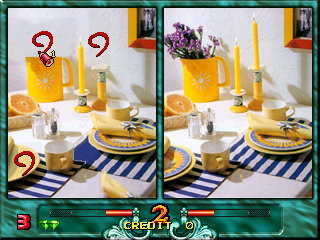

Snapshot

Game infos

Description Hidden Catch (World) / Tul Lin Gu Lim Chat Ki '98 (Korea) (pcb ver 3.03)
Name hidnctch
Manufacturer Eolith
Year 1998
Runnable yes
System arcade /
Number of players 2P sim
Added to MAME .074u2
Romset size 26.06 MB
Romset file 12 files
Romset zip 14 B
Language English / Korean
Evaluation 50 to 60 (Not Good Enough)
Genre Puzzle

Sound infos

Sound_channels 2

Driver infos

Driver status imperfect
Driver emulation good
Driver color good
Driver sound imperfect
Driver graphic good
Driver cocktail
Driver protection
Driver savestate yes

Inputs infos

Input service yes
Input tilt no
Input players 2
Input buttons
Input coins 2

Controls infos

type ways minimum maximum sensitivity keydelta reverse
joy 8 no

Display infos

type rotate flipx width height refresh pixclock htotal hbend hbstart vtotal vbend vbstart
raster 0 no 320 240 60

Dipswitchs

Roms list

console name bios size crc md5 merge sha1 region offset status optional
arcade hc0_u39.bin 4194304 eefb6add a0f6f2cf86699a666be0647274d8c9381782640d user1 0 good no
arcade hc1_u34.bin 4194304 482f3e52 7a527c6af4c80e10cc25219a04ccf7c7ea1b23af user1 2 good no
arcade hc2_u40.bin 4194304 914a1544 683cb007ace50d1ba88253da6ad71dc3a395299d user1 800000 good no
arcade hc3_u35.bin 4194304 80c59133 66ca4c2c014c4a1c87c46a3971732f0a2be95408 user1 800002 good no
arcade hc4_u41.bin 4194304 9a9e2203 a90f5842b63696753e6c16114b1893bbeb91e45c user1 1000000 good no
arcade hc5_u36.bin 4194304 74b1719d fe2325259117598ad7c23217426ac9c28440e3a0 user1 1000002 good no
arcade hc_u107.bin 32768 afd5263d 71ace1b749d8a6b84d08b97185e7e512d04e4b8d qs1000:cpu 0 good no
arcade hc_u108.bin 524288 2bae46cb 7c43f1002dfc20b9c1bb1647f7261dfa7ed2b4f9 sounddata 0 good no
arcade hc_u111.bin 32768 79012474 09a2d5705d7bc52cc2d1644c87c1e31ee44813ef soundcpu 0 good no
arcade hc_u43.bin 524288 635b4478 31ea4a9725e0c329447c7d221c22494c905f6940 maincpu 0 good no
arcade hc_u97.bin 524288 ebf9f77b 5d472aeb84fc011e19b9e61d34aeddfe7d6ac216 qs1000 0 good no
arcade qs1001a.u96 524288 d13c6407 57b14f97c7d4f9b5d9745d3571a0b7115fbe3176 qs1000 80000 good no

Chips list

name tag type clock
E1-32N maincpu cpu 45000000
I8032 soundcpu cpu 12000000
I8052 qs1000:cpu cpu 24000000
QS1000 qs1000 audio 24000000
Speaker rspeaker audio

Serie

Serie : Hidden Catch
  1. Hidden Catch (World) / Tul Lin Gu Lim Chat Ki '98 (Korea) (pcb ver 3.03) (1998)
  2. Hidden Catch 2 (pcb ver 3.03) (Kor/Eng) (AT89c52 protected) (1999)
  3. Hidden Catch 2 (pcb ver 1.00) (Kor/Eng/Jpn/Chi) (1999)
  4. Hidden Catch 2000 (AT89c52 protected) (1999)
  5. New Hidden Catch (World) / New Tul Lin Gu Lim Chat Ki '98 (Korea) (pcb ver 3.02) (1999)
  6. Hidden Catch 3 (ver 1.00 / pcb ver 3.05) (2000)

Categories

MAMEinfo

0.74u2 [?]

0.72u2 [Testdriver]


< Korea >


WIP:

- 0.114: David Haywood avoided a memset in the Hyperstone core to give ~4% speedup in Hidden Catch.

- 0.105u2: Added missing sound3 rom ($0 - QDSP wavetabl). Changed E1-32N CPU1 clock speed to 45MHz.

- 0.103u5: Pierpaolo Prazzoli fixed Hidden Catch - Game now playable. Changed E1-32N CPU1 clock speed to 50MHz. Added dipswitches 'Show Settings' and 'Show Counters'. Changed description to 'Hidden Catch (World) / Tul Lin Gu Lim Chat Ki '98 (Korea) (pcb ver 3.03)'.

- 30th January 2006: Pierpaolo Prazzoli - Working hard on Eolith games. This time I could make Hidden Catch - (c)1998 Eolith to work. It suffered from a nasty bug in the Hyperstone cpu core, because it used a memory instruction which reads data from the memory address stored in the source register, writes the data read in the destination register and then increments the source register by 4, but... if source and destination registers are the same? Well, it only incremented the register instead of reading the data from memory without incrementing it. This is strange because they could have used a normal instruction which does the same but doesn't increment the source register, but anyway... probably the compiler was a bit crap.

- 0.96: Changed user1/2 roms to cpu1/user1 roms.

- 0.92: Changed E1-32N CPU1 clock speed to 20MHz and visible area to 320x240. Fixed rom loading. Added dipswitches 'Test Mode' and 'DSW1-2' to 'DSW1-8'. Changed description to 'Hidden Catch (World) / Tul Lin Gu Lim Chat Ki '98 (Korea)'.

- 0.88u4: Replaced E1-32XS CPU with E1-32N.

- 0.87: Fixed gfx1 roms addresses.

- 0.76u2: Changed region cpu1 to user1.

- 0.74u2: Added 'Hidden Catch' (Eolith 1998).

- 0.72u2: Added (Testdriver) Hidden Catch. Preliminary Hyperstone Core, not yet working well enough to run anything [Pierpaolo Prazzoli].


LEVELS: 50


Recommended Games (Hidden Catch):

Magical Error wo Sagase

Hidden Catch

Hidden Catch 2

Hidden Catch 3

Hidden Catch 2000

New Hidden Catch

Multi Champ

Photo Y2K

Photo Y2K 2

Photo Y2K 2 (Flash 3-in-1)

Deluxe 5

Puzzle Club (Magic Eye)

History


Arcade Video game published 21 years ago:

Hidden Catch (c) 1998 Eolith.

'Hidden Catch' is a directly experiencing puzzle game by comparing scenes on the left and right and finding non-matching parts with a pen. You can feel the fun with the powerful vibration generated from the pen, when you did not find 5 non-matching pictures or when you incorrectly found.

- TECHNICAL -

Eolith 32 bits hardware: Gradation 2D system

Main CPU : Hyperstone E1-32N @ 45 or 50 MHz

Sound:
- CPU : 80c301/AT89c52
- General MIDI Chipset QDSP 1000 MIDI Player (80c32 CPU)
- MIDI 16th Channel(32 Poly) using as Effect EPROM : 512Kbytes
- MIDI Background Music EPROM : 512Kbytes.
- TDA1519A (Philips) Stereo Power AMP

Video :
- Resolution : 320x340 or 512x384
- Color : 16 bit True Color/Dot
- Screen orientation : Horizontal
- Video resolution : 320 x 240 pixels
- Screen refresh : 60.00 Hz

Memory:
- 256KByte x2 VRAM
- 512Kbyte/1Mega main RAM

Players : 2
Control : 8-way Joystick
Buttons : 2

- TRIVIA -

Hidden Catch was released in June 1998.

This game is known in Korea as "Tul Lin Gu Lim CHay Ki '98".

- SERIES -

1. Hidden Catch (1998)
2. New Hidden Catch (1999)
3. Hidden Catch 2 (1999)
4. Hidden Catch 3 (2000)

- STAFF -

Main Producer : Jeon Tae Young
Sub Producer : Jeon Ju Young
Director : Hong Guang Pyo
Graphic : Kim Dae Hoon, You Hee Jung, Park Ji Young
Sound and Music : Moon Sung Ill
Program : Choi Hyun Jung
Special Thanks : Park Tae Young, Sin Woo Kyun, Lee Sang Hyun, Choi Jong Ho
