Funny Fruit (Ver. 1.13)

Game infos

Sound infos

Driver infos

Inputs infos

Controls infos

type	ways	minimum	maximum	sensitivity	keydelta	reverse
gambling						no

Display infos

type	rotate	flipx	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart
raster	0	no	512	248	60

Dipswitchs

• Factory Default
  • Off
  • On
• Pinout
  • 8L10
  • 8L6 (Cherry Master)
  • 8L7
  • CYB
  • Invalid #1
  • Invalid #2
  • L74 (Funny Fruit)
  • PMMG
• Screen Refresh
  • 50 Hz
  • 60 Hz

Roms list

console	name	bios	size	crc	md5	merge	sha1	region	offset	status	optional
arcade	cjfunfruit-cj_1.13-a.u65		524288	3a74d769			fc8804d49cc31dadf10027ed1e2458cae96d6355	maincpu	0	good	no
arcade	cjfunfruit-cj_1.13-c.u75		524288	93854506			09fd85d60ab723883d28a12f56dbb0cb2b03907f	blitter	1	good	no
arcade	cjfunfruit-cj_1.13-d.u68		524288	33ccdc3f			8d81e25c5a38f280c6fe5710937c876dcb679e61	blitter	0	good	no
arcade	cjfunfruit-cj_1.13-e.u61		524288	7acaef9d			5031dc22e787dc4d8dffe67382068b9926c24bef	blitter	100001	good	no
arcade	cjfunfruit-cj_1.13-f.u51		524288	f5de1072			943a82899ca6a07991fa4031d2ff96f625c9d6f5	blitter	100000	good	no
arcade	cjfunfruit-cj_1.13-g.u50		524288	5fb53d3e			f4a37b00a9417440685d198f1375b615848e7fb6	samples	0	good	no
arcade	cjfunfruit_2.3.c8		8192					mcu	0	nodump	no
arcade	gal16v8d_ck1.u69		279					plds	0	nodump	no
arcade	gal16v8d_ck2.u64		279					plds	0	nodump	no
arcade	gal16v8d_dec.u70		279					plds	0	nodump	no
arcade	gal16v8d_vdo.u53		279					plds	0	nodump	no
arcade	gal16v8d_vdp.u15		279					plds	0	nodump	no

Chips list

name	tag	type	clock
M68000	maincpu	cpu	11059200

Categories

• Added to Mame in version .140u2
• Casino
• Reels

MAMEinfo

0.140u2 [Luca Elia, Smitdogg, The Dumping Union]


SETUP:

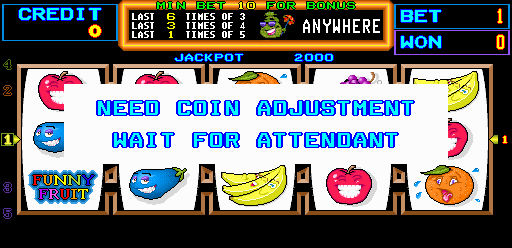

- At start-up a "NEED COIN ADJUSTMENT" pops up. Press Service Mode (F2), go to 'MENU PAGE 1' with Deal (2), move to 'PRICE FOR COIN #1' with High (A), and set it with Low (S), then exit with (F2).


WIP:

- 0.146u2: Changed description to 'Funny Fruit (Ver. 1.13)'.

- 0.140u2: Luca Elia, Smitdogg and The Dumping Union added 'Funny Fruit (Version 1.13)' (Cadillac Jack 1998).

- 1st December 2010: Luca Elia - Funny Fruit: I've added this video slot by Cadillac Jack to the ilpag driver (written by David, Angelo & Tomasz). The blitter is functionally identical (or very similar) to that in the other two supported games, but with a rather different memory layout. So the implementation is kept separate at the moment, while adding image flipping and support for consecutive blits. Sound is missing since the DAC is handled by a 68HC705C8 MCU with 8KB of internal ROM (not dumped). Apart from complaining for the missing sound CPU handshake at boot, the game currently freezes while trying to print the redemption tickets. Thanks to Smitdogg and The Dumping Union.

- 28th November 2010: Smitdogg - I got a couple of broken Cadillac Jack Funny Fruit boards. It's an old cherry master from the late 90's.
