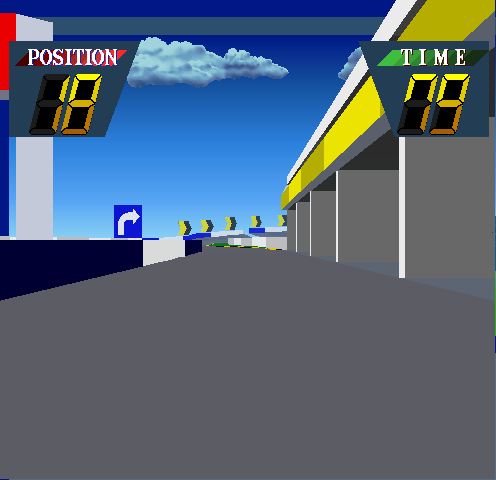

Mame game : driveyes : Driver's Eyes (Japan)

Game infos

Description Driver's Eyes (Japan)

Name driveyes

Manufacturer Namco

Year 1991

Runnable yes

System arcade /

Number of players ???

Added to MAME .097u1

Romset size 5.54 MB

Romset file 28 files

Romset zip 1 B

Language English

Genre Driving

Driver infos

Driver status preliminary

Driver emulation preliminary

Driver color good

Driver sound good

Driver graphic imperfect

Driver cocktail

Driver protection

Driver savestate yes

Inputs infos

Input service yes

Input tilt no

Input players 2

Input buttons

Input coins 2

Controls infos

type	ways	minimum	maximum	sensitivity	keydelta	reverse
joy	8					no
paddle		0	255	15	10	no
pedal		0	255	15	10	no

Display infos

type	rotate	flipx	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart
raster	0	no	496	480	60.606061	24576000	768	0	496	528	0	480

Configuration

name	tag	mask
Clutch Mode Name Emulated Value 1 Default yes Name Natural Value 0 Default no	gearbox:CONFIG	1
Gearbox Debug Name No Value 0 Default no Name Yes Value 2 Default yes	gearbox:CONFIG	2

Dipswitchs

DSW2
- Off
- On
DSW3
- Off
- On
DSW4
- Off
- On
DSW5
- Off
- On
DSW7
- Off
- On
PCM ROM
- 2M
- 4M
Screen Stop
- Off
- On
Service Mode
- Off
- On

Roms list

console	name	size	crc	sha1	region	offset	status	optional
arcade	de1-data-l.1a	524288	9bb37aca	7f5dffc95cadcf12f53ff7944920afc25ed3cf68	data	1	good	no
arcade	de1-data-u.3a	524288	fe65d2ab	dbe962dda7efa60357fa3a684a265aaad49df5b5	data	0	good	no
arcade	de1-obj0.5s	262144	7438bd53	7619c4b56d5c466e845eb45e6157dcaf2a03ad94	gfx1	0	good	no
arcade	de1-obj1.5x	262144	45f2334e	95f277a4e43d6662ae44d6b69a57f65c72978319	gfx1	80000	good	no
arcade	de1-obj2.3s	262144	8f1a542c	2cb59713607d8929815a9b28bf2a384b6a6c9db8	gfx1	100000	good	no
arcade	de1-obj3.3x	262144	fc94544c	6297445c64784ee253716f6438d98e5fcd4e7520	gfx1	180000	good	no
arcade	de1-obj4.4s	262144	335f0ea4	9ec065d99ad0874b262b372334179a7e7612558e	gfx1	40000	good	no
arcade	de1-obj5.4x	262144	9e22999c	02624186c359b5e2c96cd3f0e2cb1598ea36dff7	gfx1	c0000	good	no
arcade	de1-obj6.2s	262144	346df4d5	edbadb9db93b7f5a3b064c7f6acb77001cdacce2	gfx1	140000	good	no
arcade	de1-obj7.2x	262144	9ce325d7	de4d788bec14842507ed405244974b4fd4f07515	gfx1	1c0000	good	no
arcade	de1-pt0-lb.8d	131072	9c5c477e	c8ae8a663227d636d35bd5f432d23f05d6695942	point16	1	good	no
arcade	de1-pt0-ub.8j	131072	3b6b746d	40c992ef4cf5187b30aba42c5fe7ce0f8f02bee0	point16	0	good	no
arcade	de1-pt1-l.8e	131072	a05ee081	1be4c61ad716abb809856e04d4bb450943706a55	point16	40001	good	no
arcade	de1-pt1-u.8l	131072	23bc72a1	083e2955ae2f88d1ad461517b47054d64375b46e	point16	40000	good	no
arcade	de1-pt2-l.7n	131072	3339a976	c9eb9c04f7b3f2a85e5ab64ffb2fe4fcfb6c494b	point16	80001	good	no
arcade	de1-pt2-u.5n	131072	10e83d81	446fedc3b1e258a39fb9467e5327c9f9a9f1ac3f	point16	80000	good	no
arcade	de1-snd0.8j	131072	5474f203	e0ae2f6978deb0c934d9311a334a6e36bb402aee	audiocpu	c000	good	no
arcade	de1-snd0r.8j	131072	7bbeda42	fe840cc9069758928492bbeec79acded18daafd9	audiocpu	c000	good	no
arcade	de1-sp-lb.4c	131072	50cb9f59	aec7fa080854f0297d9e90e3aaeb0f332fd579bd	slave	1	good	no
arcade	de1-sp-ub.6c	131072	231b144f	42518614cb083455dc5fec71e699403907ca784b	slave	0	good	no
arcade	de1-voi0.12b	262144	fc44adbd	4268bb1f025e47a94212351d1c1cfd0e5029221f	c140	40000	good	no
arcade	de1-voi1.12c	262144	a71dc55a	5e746184db9144ab4e3a97b20195b92b0f56c8cc	c140	c0000	good	no
arcade	de1-voi2.12d	262144	4d32879a	eae65f4b98cee9efe4e5dad7298c3717cfb1e6bf	c140	140000	good	no
arcade	de1-voi3.12e	262144	e4832d18	0460c79d3942aab89a765b0bd8bbddaf19a6d682	c140	1c0000	good	no
arcade	de2-mp-lb.1j	131072	11d8587a	ecb1e8fe2ba56b6f6a71a5552d5663b597165786	maincpu	1	good	no
arcade	de2-mp-ub.3j	131072	f9c86fb5	b48d16e8f26e7a2cfecb30285b517c42e5585ac7	maincpu	0	good	no
arcade	sys2c65c.bin	32768	a5b2a4ff	068bdfcc71a5e83706e8b23330691973c1c214dc	mcu	8000	good	no
arcade	sys2mcpu.bin	8192	a342a97e	2c420d34dba21e409bf78ddca710fc7de65a6642	mcu	0	good	no

Chips list

name	tag	type	clock
C140	c140	audio	21390
HD63705	mcu	cpu	2048000
M68000	slave	cpu	12288000
M6809	audiocpu	cpu	3072000
Speaker	rspeaker	audio
TMS32025	dsp	cpu	48000000
YM2151	ymsnd	audio	3579580

0.97u1 [Phil Stroffolino]

< Japan >

WIP:

- 0.182: Angelo Salese added preliminary Gear Box input for Driver's Eyes. Added mechanical clutch and make it to automatically set to neutral on press, added debug for current gear. Wrote a device core for the Namco 6-speed gearbox (used by Driver's Eyes, Ridge Racer DX and Ace Driver). Replaced vertical 2-way Joystick with 8-way Joystick with 3x buttons.

- 0.180: Remap controls to use pedals and paddles for Driver's Eyes [Logan B]. Added vertical 2-way Joystick, Paddle and Pedal.

- 0.169: Fixed access violation in debug build.

- 0.152: hap changed description to 'Driver's Eyes (Japan)'.

- 0.130u1: Phil Bennett fixed C140 ROM loading in Driver's Eyes. Changed description to 'Driver's Eyes (US)'.

- 0.130: Naibo Zhang hooked up 2D layer in Driver's Eyes.

- 3rd February 2009: Naibo - Unlike some other sys-21 games like starblad or solvalou, which use sprite layers with priorities from 0 to 7, Driver's Eyes uses up to 14 & 15.

- 0.126: Driver's Eyes improvements [Naibo]: The communication work between CPU and 3D DSP should be limited to the master M68000, if the address mapping is done in the shared memory, master CPU would be disturbed by the slave one. dipswitches: DIP3 ON for Screen on the left and DIP4 ON for Screen on the right should not toggle on both. The left, center and right screens have separate programs and boards, each would work independantly. About projection angles of left and right screen, the angle is correct on 'DRIVER'S EYES' title screen, however in the tracks of demo mode it doesn't seem correct. The game also features a pretty nice 2D sprite layer, which still doesn't show up yet. It is known that the CPU does constantly feed the 2D video memory some meaningful and logical data. Aaron Giles fixed access violation.

- 19th June 2008: Conda - The communication work between CPU and 3D DSP should be limited to the master M68000, if the address mapping is done in the shared memory, master CPU would be disturbed by the slave one. Left, center and right screens have separate programs and boards, each would work independantly, how these 3 boards communicate and coordinate is yet unknown. About projection angles of left and right screen. The angle is correct on "DRIVER'S EYES" title screen, however in the tracks of demo mode it doesn't seem correct. The game also features a pretty nice 2D sprite layer, which still doesn't show up yet. It is known that the CPU does constantly feed the 2D video memory some meaningful and logical data. MAME system21 driver does not emulate this 2D sprite layer, we have to use namcoic and namco system-II emulator instead, possibly they are not compatible with system21.

- 11th November 2007: Phil Stroffolino - I've made progress with Driver's Eyes, a three-monitor System21 title. Only the middle screen is currently working at the moment. The game is implemented with dedicated hardware for each display.

- 0.119u1: Removed 2nd TMS32025 CPU. Changed TMS32025 CPU5 clock speed to 48MHz. Fixed gfx1 rom loading. Changed input to 2 buttons and 2x coin slots.

- 0.116u3: Atari Ace fixed crashes in Driver's Eyes.

- 0.97u3: Added new Driver's Eyes roms.

- 0.97u1: Phil Stroffolino added 'Driver's Eyes' (Namco 1999).

- 4th April 2005: Dumping Project - Randy have won a boardset for Namco's 'Driver's Eyes'.

Other Emulators:

* Mjolnir

Recommended Games (F1-3D):

Turbo

Pole Position

Pole Position II

TX-1

Driving Force

WEC Le Mans 24

Continental Circus

Final Lap

Final Lap Twin (Tourvision PCE bootleg)

Final Lap 2

Final Lap 3

Final Lap R

Winning Run

Winning Run Suzuka Grand Prix

Winning Run '91

Super Monaco GP

Super Monaco GP (Mega-Tech)

Driver's Eyes

F1 Exhaust Note

F1 Super Lap

Grand Prix Star

F-1 Grand Prix Star II

Racing Beat

Ground Effects

Virtua Racing

Daytona USA

Daytona USA 2

Daytona USA 2 Power Edition

Ace Driver: Racing Evolution

Ace Driver: Victory Lap

Driver's Edge

F1 Super Battle

Racin' Force

INDY 500 Twin

Slip Stream

Sega Touring Car Championship

Super GT 24h

Le Mans 24

Ferrari F355 Challenge

Ferrari F355 Challenge (Twin)

Ferrari F355 Challenge 2 (Twin)

Cart Fury

NASCAR Racing

Maximum Speed

History

Arcade Video game published 29 years ago:

Driver's Eyes (c) 1990 Namco.

Driver's Eyes was a state of the art Formula One Simulator, a follow up to "Winning Run" (1988), one of its most advanced features for 1990 was the 3-D solid polygons and the major system 21 sound clean up (music composed by Hiroyuki Kawada who also composed music for Air Combat,Winning Run etc.) the player would select his/her level of racing, Novice or Grand Prix, then, transmission select, (Easy Drive or Technical Drive). when the selections were made, the game would then show a short animation of the engine going into the engine bay and the body work gliding down (changing view to the cockpit) revealing a sign saying BRAKES ON when the sign lifts the race started (in novice mode Grand Prix was on the starting grid). Also the game featured panoramic view thanks to a 3 monitor setup (controlled by 3 system 21's!) and finally to add the game also had an LCD display in the player's cockpit in sync with the speedo on the screen.

- TECHNICAL -

Namco System 21 hardware
Game ID : DE

Main CPU : (2x) Motorola 68000 (@ 12.288 Mhz), M6809 (@ 3.072 Mhz), HD63705 (@ 2.048 Mhz), (2x) TMS32025 (@ 24 Mhz)
Sound Chips : C140 (@ 21.39 Khz), YM2151 (@ 3.57958 Mhz)

Players : 1
Control : stick
Buttons : 4

- TRIVIA -

Even if titlescreen says 1990, Driver's Eyes was released in January 1991 in Japan.
