M.A.C.H. 3 (set 3)

  1. Game infos
  2. Parent and Clones
  3. Sound
  4. Driver
  5. Inputs
  6. Controls
  7. Display
  8. Dipswitchs
  9. Roms list
  10. Chips list
  11. Disks list
  12. Categories
  13. History

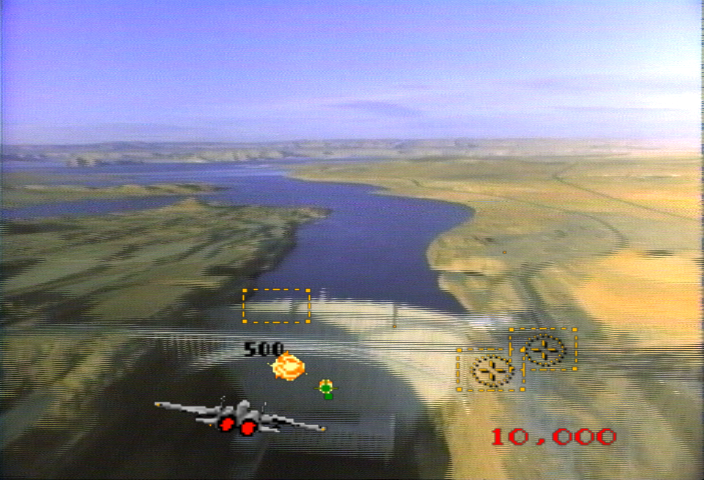

Snapshot

Game infos

Description M.A.C.H. 3 (set 3)
Name mach3b
Manufacturer Mylstar
Year 1983
Runnable yes
System arcade /
Number of players 1P
Added to MAME .172
Romset size 0 B
Romset file files
Romset zip 0 B
Language English
Genre Shooter

Parent and clones

Parent mach3 : M.A.C.H. 3 (set 1) (1983)

Sound infos

Sound_channels 1

Driver infos

Driver status good
Driver emulation good
Driver color good
Driver sound good
Driver graphic good
Driver cocktail
Driver protection
Driver savestate yes

Inputs infos

Input service yes
Input tilt yes
Input players 1
Input buttons
Input coins 2

Controls infos

type ways minimum maximum sensitivity keydelta reverse
joy 8 no

Display infos

type rotate flipx width height refresh pixclock htotal hbend hbstart vtotal vbend vbstart
raster 0 no 704 480 59.940057 28636362 910 0 704 525 44 524

Dipswitchs

Roms list

console name bios size crc md5 merge sha1 region offset status optional
arcade m3drom1.bin 4096 a6e29212 m3drom1.bin a73aafc2efa99e9ae0aecbb6075a10f7178ac938 r2sound:audiocpu d000 good no
arcade m3yrom1.bin 4096 eddf8872 m3yrom1.bin 29ed0d1828639849bab826b3e2ab4eefac45fd85 r2sound:speechcpu f000 good no
arcade mach3bg0.bin 4096 ea2f5257 mach3bg0.bin 664502dd2b7ee4ce96820da532615f3902b45557 bgtiles 0 good no
arcade mach3bg1.bin 4096 f543e4ce mach3bg1.bin 2a1b7dbbcd9756f836ca2e42973043b98a303082 bgtiles 1000 good no
arcade mach3fg0.bin 8192 0bae12a5 mach3fg0.bin 7bc0b82ccab0e4498a7a2a9dc85f03125f25826e sprites 6000 good no
arcade mach3fg1.bin 8192 9b88767b mach3fg1.bin 8071e11906b3f0026f9a210cc5a236d95ca1f659 sprites 4000 good no
arcade mach3fg2.bin 8192 2a59e99e mach3fg2.bin 5c1faa244fc0f53cc2a52c8d4d40fb178706c2ed sprites 2000 good no
arcade mach3fg3.bin 8192 472128b4 mach3fg3.bin 8c6f36cab5ec8abb6db2e6d52530560664b950fe sprites 0 good no
arcade rom0 8192 4bfcd992 7fe0977176ea1b5a54c3f77afb4e7bb46af8ec63 maincpu e000 good no
arcade rom1 8192 1f755e11 cead5f6be15d1ef21b3011a7ec345e35e942393b maincpu c000 good no
arcade rom2 8192 5c1fd3ac 8e3c14f7e6fe849ab6d9a1d99c03e2c275eca33a maincpu a000 good no
arcade rom3 8192 9daa023f 80efeca6e7f9112a2335045c9890b1458ef38cce maincpu 8000 good no
arcade rom4 8192 bf460625 899b691888505a7759c5ce6d4490519b72322d07 maincpu 6000 good no

Chips list

name tag type clock
8-Bit R-2R DAC r2sound:dacvol audio
AY-3-8913A r2sound:ay2 audio 2000000
Gottlieb Sound rev. 2 r2sound audio
I8049 laserdisc:pr8210 cpu 4410000
I8088 maincpu cpu 5000000
M6502 r2sound:speechcpu cpu 1000000
Pioneer PR-8210 laserdisc audio
SP0250 r2sound:spsnd audio 3120000
Speaker speaker audio

Disks list

name md5 sha1 merge region index status optional
mach3 d0f72bded7feff5c360f8749d6c27650a6964847 mach3 laserdisc 0 good no

Categories

History


Arcade Video game published 36 years ago:

M.A.C.H. 3 (c) 1983 Mylstar Electronics.

You pilot either a Fighter plane or a Bomber plane and must fly around hitting targets on the ground or in the air while avoiding enemy fire. M.A.C.H. 3 used video footage from the laser disc and overlaid computer graphics for your ship and the enemy ships.

- TECHNICAL -

[Cockpit model]

Game ID : GV-109

Main CPU : I8086 (@ 5 Mhz)
Sound CPU : (2x) M6502 (@ 1 Mhz)
Sound Chips : (2x) DAC, (2x) AY8910 (@ 2 Mhz), SP0250 (@ 3.12 Mhz)

Screen orientation : Horizontal
Video resolution : 256 x 240 pixels

Players : 1
Control : 8-way joystick
Buttons : 2

- TRIVIA -

Released in September 1983. Approximately 5,600 units were produced (for both Upright and Sit-down versions)

Japanese sales by Taito corp.

M.A.C.H. stands for 'Military Air Command Hunter'.

In order to record the video footage for the game, a specially designed plane was used that had cameras mounted on the nose and in the belly. To keep the video from the laser disc player and computer graphics in sync, target data had to be entered by hand one frame at a time on the right audio track of the laser disc. This was a very time consuming process but was worth the effort, as M.A.C.H. 3 was one of the most successful laser disc games of all time.

King Brown holds the official record for this game with 348,800 points.

- STAFF -

Programmed by : Chris Brewer, Fred Darmstadt
Video graphics by : Jeff Lee
Video footage by : Clay Lacey
Sound by : David D. Thiel
Cabinet graphics by : Terry Doerzaph
